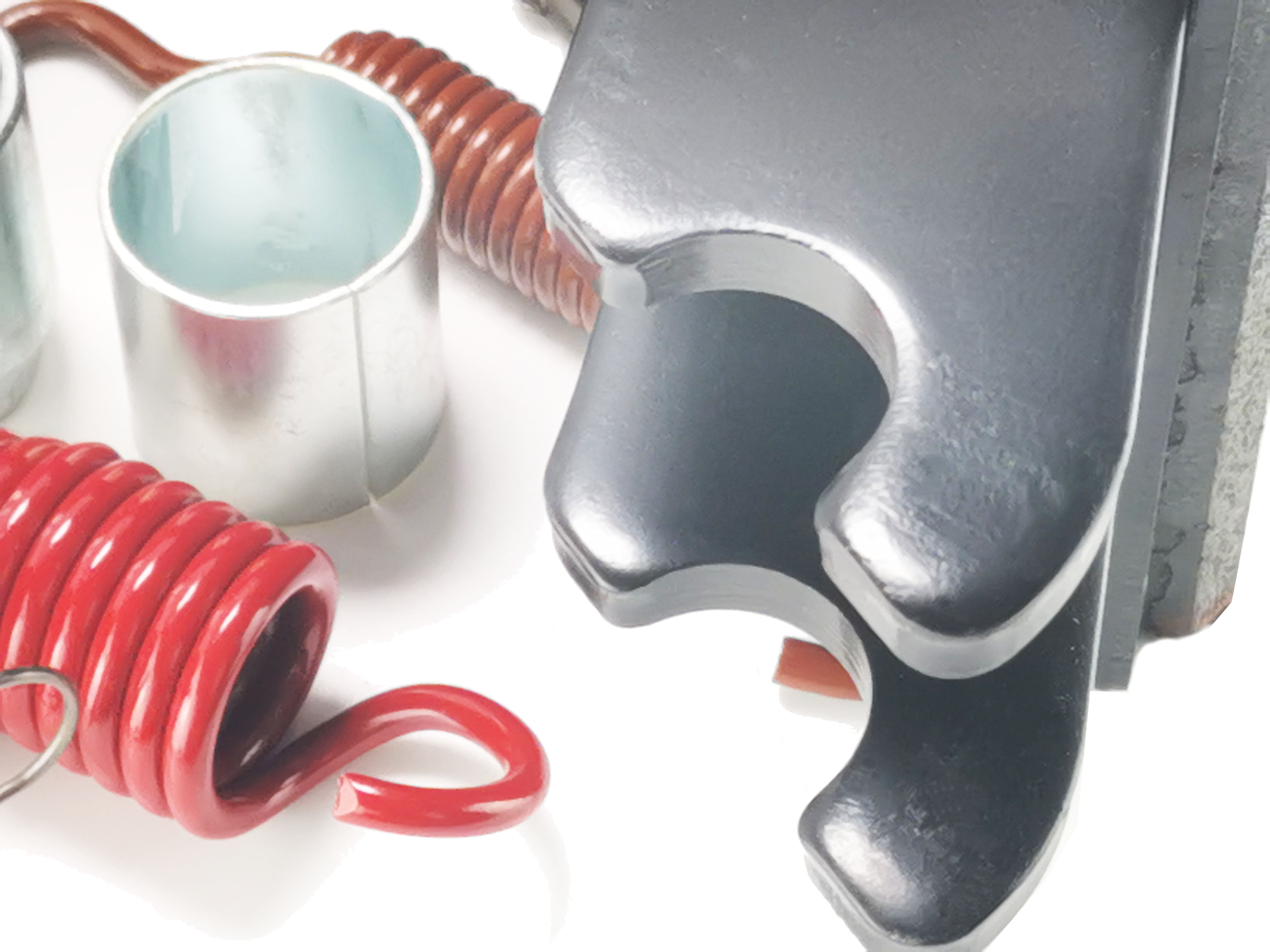

25KN 4707Q American Brake Shoe Plus Meritor Air Brake Shoes
What's advantages of our brake shoe?
1. OEM qualtity control to make sure that our products can give you 18 Month warranty whatever any different road the trailer driving.
2. Pretty good matched with the lining, no need any more adjustment. Because it's surface flatness less than 0.03mm.
3. Strong welding strength. American standard from 17-25KN. The maximum welding intensity of ours reach to 29KN.
Because we use constant temperature cooling system while quenching.
4. Our engineers got more than 20 years experience in doing this industry. We can slove all problem you met before.
5. Strictly quality control. Any complain from you will be quickly treated, and the solution would be given to you inside of 3 days.
Product Details
| Type | American Type Brake Shoe |
| OEM NO. | XK3124707QP |
| Dimension | 16.5''×7'' ( 419×177.8mm ) |
| Material | Q235/Q345 |
| Surface Treatment | E-Coating≥240 Hours Salty Spray Test |
| Welding Intersity | 17-25 KN |
| Color | Black Or As Required |
| Brake Liner Grade | 23K FF |
| Weight | 7.7 KG |
| BYF Drawing | BYF-Z-15 |
| Certification | IATF 16949:2016 |
| OEM Supply | Custom Design And Service Are Accepted |
| Packing | By Pallet Or Plywood Box |
| Loading Port | Ningbo Port Or As Required
|
Other Models Are Also Available
| FMSI NO. | | Description | OEM NO. | |
| 4720QP | E-10854 | MERITOR Q-Plus series 16 1/2"X5" | MERITOR A-3222-Z-2288 | Available |
| 4707 | E-5503 | MERITORQ-Plus series 16 1/2"X7" | MERITOR A-3222-D-2006 | Available |
| 4718 | E-10850 | MERITORQ-Plus series 16 1/2"X8" | MERITOR A-3222-J-2272 | Available |
| 4711 | E-10844 | MERITOR Q-Plus series 16 1/2"X8 5/8" | MERITOR A-3222-K-2169 | Available |
| Model | OEM NO. | | Model | OEM NO. |
| BPW180 New | 05.091.46.17.0 | | 4551 | Supply to FUWA 16T |
| BPW200 New | 05.091.27.83.0 | | 4551P | MERITOR A-3222-L-1572 |
| BPW220 New | 05.091.28.29.0 | | 4551Q | MERITOR A-3222-T-1346 |
| BPW360 New | 05.091.19.22.1 | | 4702QP | MERITOR A-3222-M-2223 |
| BPW3020 New | 05.091.14.80.0 | | 4703QP | MERITOR A3222-D-2110 |
| BPW180 Old | 05.091.26.64.2 | | 4704QP | MERITOR A3222-E-2111 |
| BPW200 Old | 05.091.27.54.2 | | 4705QP | MERITOR A3222-F-2112 |
| BPW220 Old | 05.091.28.11.2 | | 4706QP | MERITOR A-3222-G-2113 |
| BPW360 Old | 05.091.19.07.0 | | 4707QP | 152.24.724 A19-3222-D-2006 |
| BPW3020 Old | 05.091.14.46.0 | | 4709ES-2 | EATON 819707 R4709G2 |
| SAF180 New | 2.056.0120.00 | | 4710QP | MERITOR A-3222-A-2159 |
| SAF200 New | 2.056.0121.00 | | 4711QP | MERITOR A-3222-K-2169 |
| SAF180 Old | 3.054.0052.00 | | 4715QP | MERITOR A-3222-P-2200 |
| SAF200 Old | 3.054.0053.00 | | 4717ES | R700018 |
| SAF-SK9 | 3.054.0120.00 | | 4718QP | MERITOR A-3222-J-2272 |
| SAF-SK11 | 3.054.0120.00 | | 4719ES-2 | EATON 819705 |
| BENZ-140 | 620.420.01.19 | | 4720QP | MERITOR A-3222-Z-2288 |
| BENZ-160 | 393.420.07.19 | | 4725ES-2 | EATON 819706 |
| BENZ-160 | 620.420.00.19 | | 4726ES-2 | EATON 819708 |
| BENZ-180 | 389.420.61.19 | | 4729ES-2 | EATON 974584 |
| BENZ-180 | 620.420.03.19 | | 4223E | EATON 805677 |
| BENZ-220 | 305.420.07.19 | | 4524P | MERITOR A-3722-D-82 |
| BENZ-220 | 620.420.05.19 | | 4524Q | MERITOR A-3222-E-1383 |
| New 125-R/L | 3095193 | | 4524QR | MERITOR A-3222-J-1440 |
| New 150-R/L | 3095194 | | 4536 | DANA M12WS122X |
| New 175-R/L | 3095195 | | 4591 | DANA M12WS127X |
| New 200-R/L | 3095196 | | 4591PQ | R700031 |
| New 225-R/L | 3095197 | | 4591SF | R704591 |
| MAN 160 | 81502016098 | | 4644Q | MERITOR A-3222-B-1510 |
| MAN 180 | 81502016099 | | 4670Q | MERITOR A-3222-S-1527 |
| MAN 220 | 81502016114 | | 4674E | EATON 805682 |
| 4544-Cast | DANA M12WS108 | | 4692 | R700007 |
| 4514P | MERITOR A-3722-L-64 | | 4311E | EATON 805442 EATON 805460 |
| 4514Q | MERITOR A-3222-C-1381 | | 4317E | R700023 |
| 4514QR | MERITOR A-3222-V-1348 | | 1443E | EATON 807685 R700017 |
| 4515E | 150.25.412 | | 1307T | MERITOR A-3222-K-1103 |
| 4515P | MERITOR A-3722-N-66 | | 1308T | MERITOR A-3222-F-1072 |
| 4515Q | 152.05.533 A91-3222-S-1293 | | 1308Q | MERITOR A-3222-F-1982 |
| 4515 | Supply to FUWA 13T | | 1308E | EATON 1005840 |
| 4516 | 152.06.227 | | 5030-178 SMB178 | |
| 4515XEM | FRUEHAUF ACF-3379-1 | | 07-005 SMB | |
| 4551 XEM-L | FRUEHAUF ACF-3380-1 | | 5030-203 SMB203 | |
| 4551 XEM-R | FRUEHAUF ACF-3380-2 | | 61540 | |
| 4551E | 152.00.007 | | T8235 | |
| 4551F | 152.05.191 | | ……
|
1, Q: What kind of auto parts you can provide?
A: We are specialized in manufacturing truck parts for chassis parts. Mainly in king pin kit, spring pin, and customized product
with drawings or samples.
2, Q: Can you provide the sample for test?
A: Yes, it’s our honor and pleasure to provide you the sample.
3, Q: Can you make the product as the sample/drawing picture we provide?
A: Our technical department welcome orders against customer’s samples and requirements. And provide OEM service.
4, Q:What kind of truck you service for?
A:We are mainly in the field of European and Japanese trucks. Like BENZ, , SCANIA, MAN, NISSAN, HINO,
DAIHATSU,TOYOTA,MITSUBISHI, ISUZU, MAZDA, etc.
Quality Inspection Process

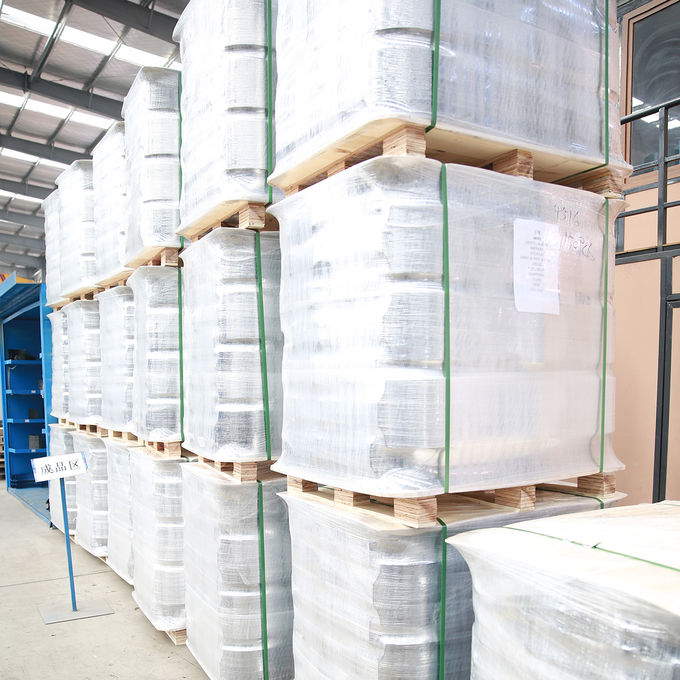

Packing & Delivery
Polyethylene foamed film will be use between each layer to protect the surface and edge.
Whole body of the pallet will be packaged by PE film in order to avoiding water go inside, and prevent pallet crash with each other.
