Multi-Leaf Spring 90×20-10 | For Heavy Duty Semi Trailer | Material
SUP9 | Fatigue Testing ≥180K Cycles

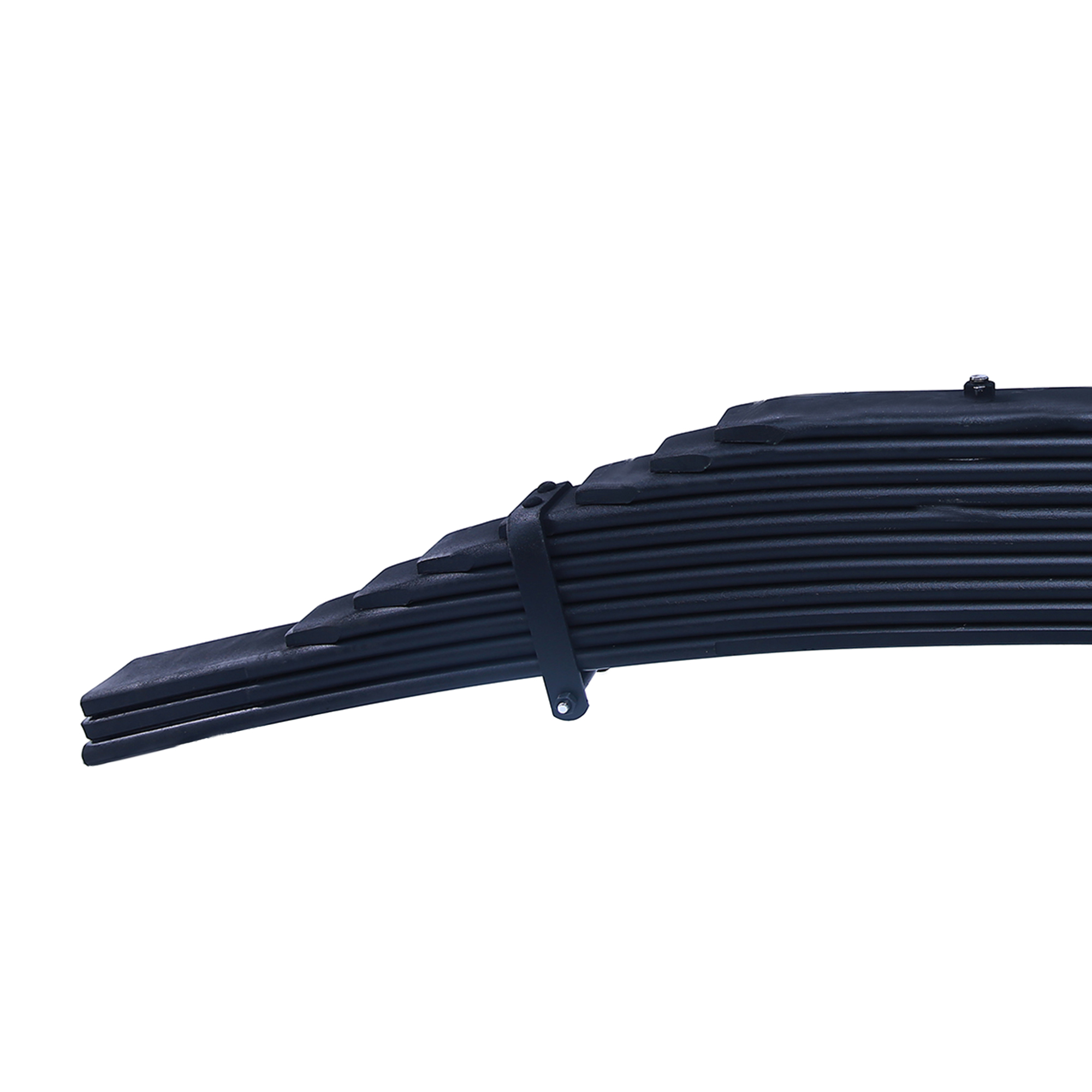

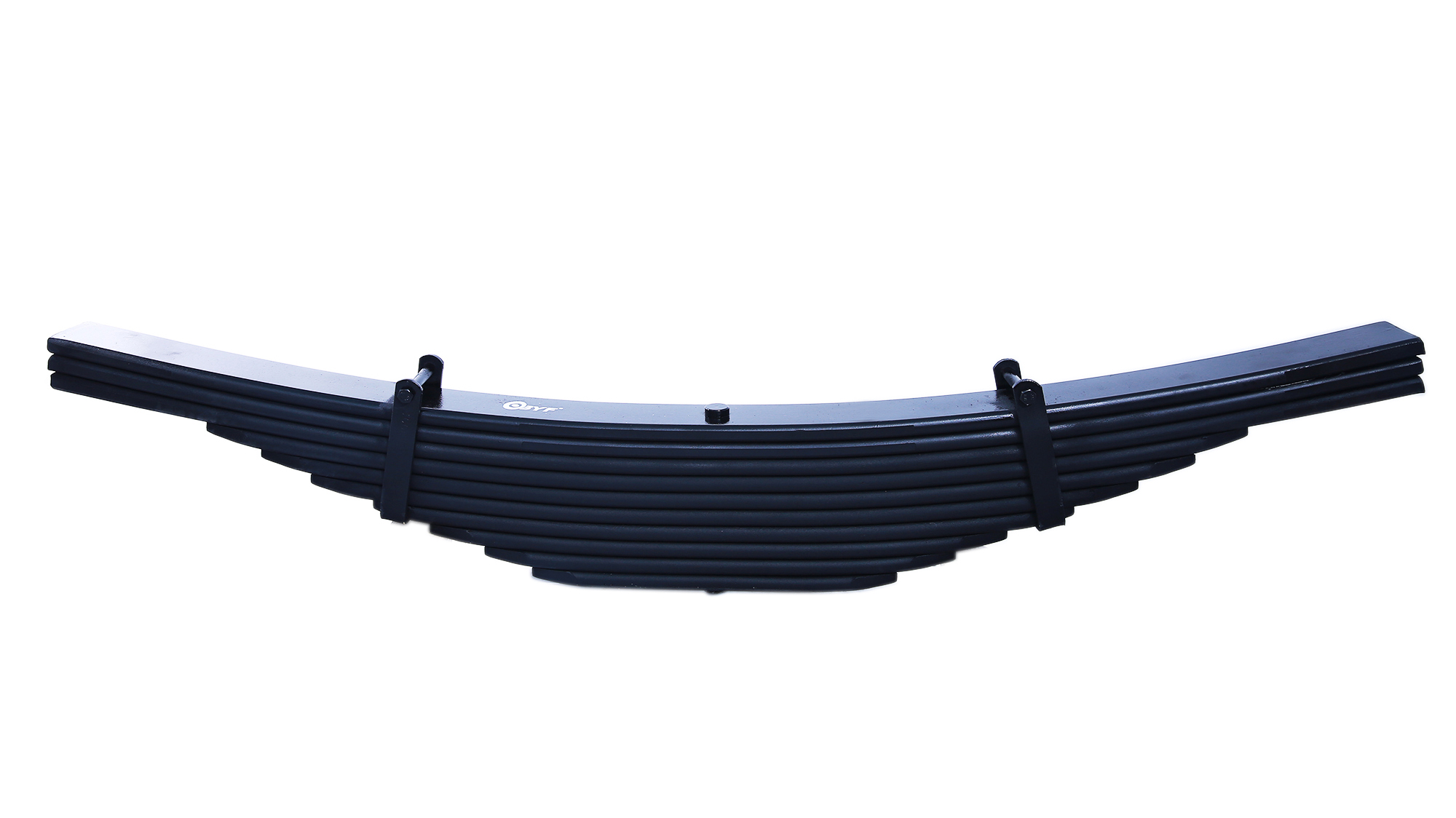

MULTI-LEAF SPRING 90×20-10 / SUP9
What's advantages of our leaf spring?
1. OEM qualtity control to make sure that our leaf spring could
long times service. All of our products is official process without
any process deleting.
2. Fatigue testing pass through al the international standard,
according to our customer requirement.
3. Especiall the torlerance controll of key dimension is 50% higher
than other factories.
4. Our engineers got more than 20 years experience in doing this
industry. We can slove all problem you met before.
5. Strictly quality control. Any complain from you will be quickly
treated, and the solution would be given to you inside of 3 days.
6. Provide customers with any type of customized production.
How long would be needed to your order?
Our capacity of production one simple type leaf spring is 600
Tons/8 hours.
Technical Standard
1. Single piece leaf spring hardness need to be HB378-445 after
heat treatment;
2. Overheating, overburning, cracking, folding, bruising and other
defects are not allowed on surface;
3. Each sinlgle leaf spring need to do stress shot peening
treatmnet;
4. After the spring assembling, the center bolt must be punched and
riveted;
5. Bolt mechanical performance level: 8.8-GB3098.1-2000;
6. The surface defects of bolts shall be implemented according to
GB5779.1-2000;
7. Tolerance of bolts is according to GB3103.1-1982 Grade B product
;
8. The spring assembly is painted with black paint or as requested,
according to QC / T484-TQ9;
9. Other technical requirements shall be implemented according to
GB / 19844-2005.
Product Details
| Size | 90×20-10 |
| Material | SUP9 |
| Surface Treatment | E-Coating/Anti-Rusty Oil≥240 Hours Salty Spray Test |
| Shoot Peening | ≥0.18C |
| Weight | 144.5 KG |
| Color | Black Or As Required |
| Fatigue Testing | ≥180K Cycles |
| Hardness | 40-47HRC |
| OEM | Customized Design And Producing In Different Level |
| Logo | Customer Customization |
| Loading Port | Qingdao Port Or As Required |

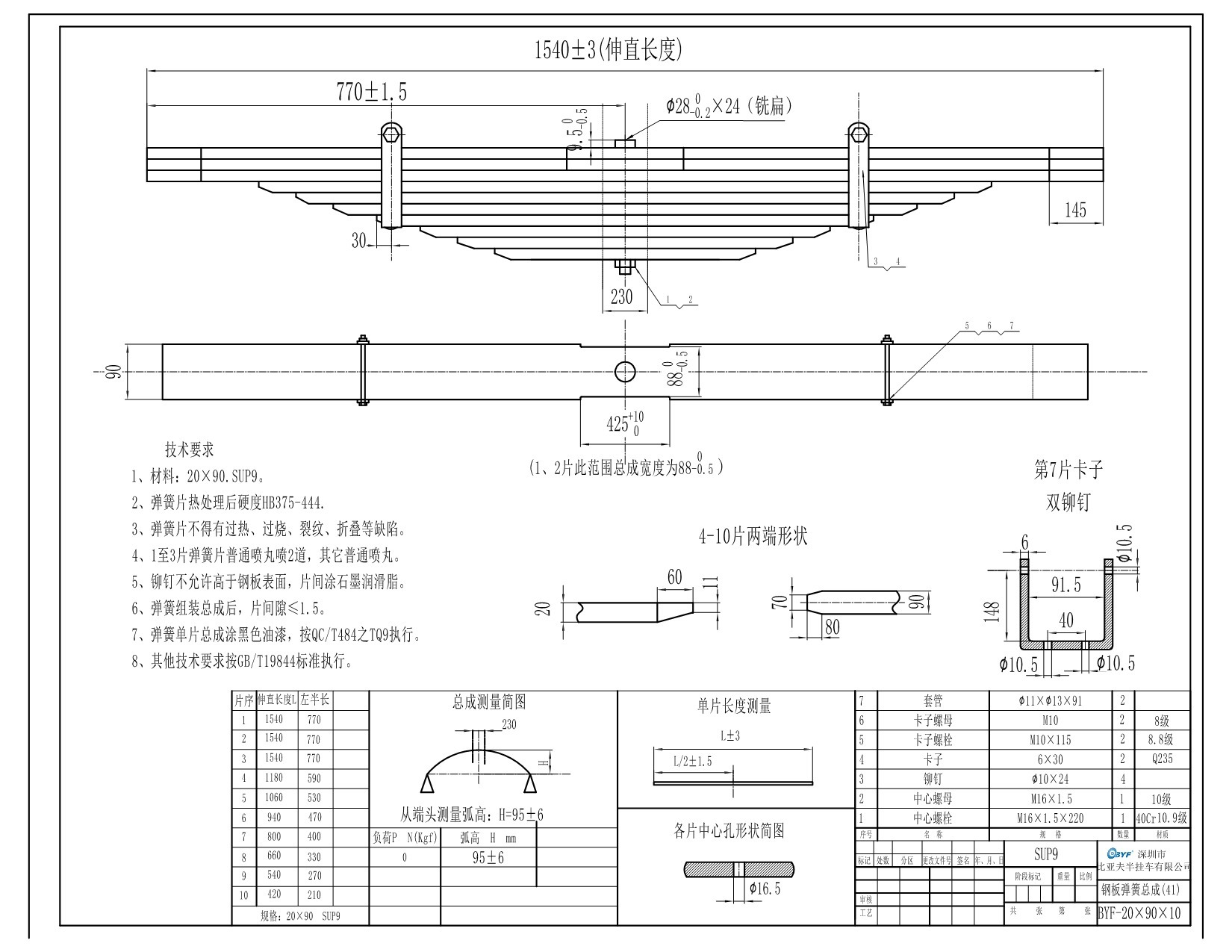

Drawing Details
| No. | Material specifications | Straighten length (mm) |
| 1 | 90×20
SUP9 | 1540 |
| 2 | 1540 |
| 3 | 1540 |
| 4 | 1180 |
| 5 | 1060 |
| 6 | 940 |
| 7 | 800 |
| 8 | 660 |
| 9 | 540 |
| 10 | 420 |
Production & Packing
Excellent Pre-sale Service
1. According to your specification request, provide the best price
for you.
2. After you confirmed the specification and price, our engineers
will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or
Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you
know your order details progress.
5. After the product manufacture finished, if you need, we will
arrange shipping for you.
With our professional skill, you just need to pick your products up
at the destination place, and don’t need to worry about the
shipping at all.
Our Production Line
