Spring Brake Chamber Type 3030 | OEM 9253020020 | Double Diaphragm
Chamber T3030 DD | For Axles With Drum Brakes
OEM QUALITY BRAKE CHAMBER T3030
Type 3030 Brake Chamber. Standard stroke, 2.50 inch stroke length. For port and bolt thread, both inch and metric are optional.
| Working Pressure | 800KPa |
| Maximum Working Pressure | 1MPa |
| Pushrod Stroke | 0 - 64mm |
| Ambient Temperature | - 40 ~ +80°C |
| Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
| Service Time | ≥1,000,000 times |
| Life-time For Parking Chamber | ≥200,000 times |

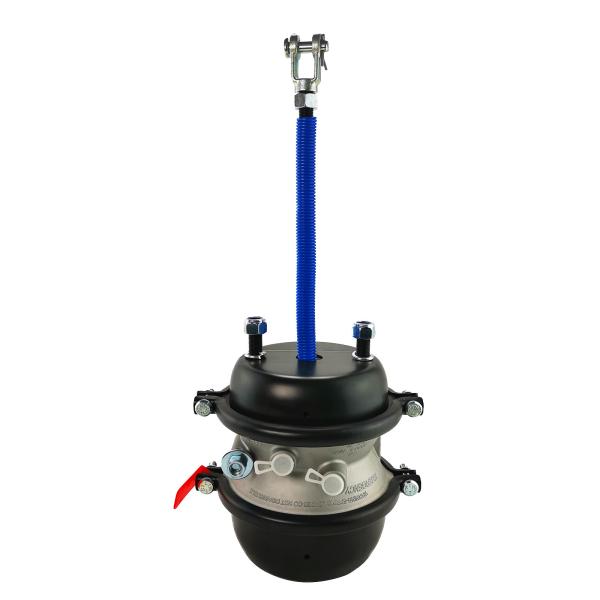

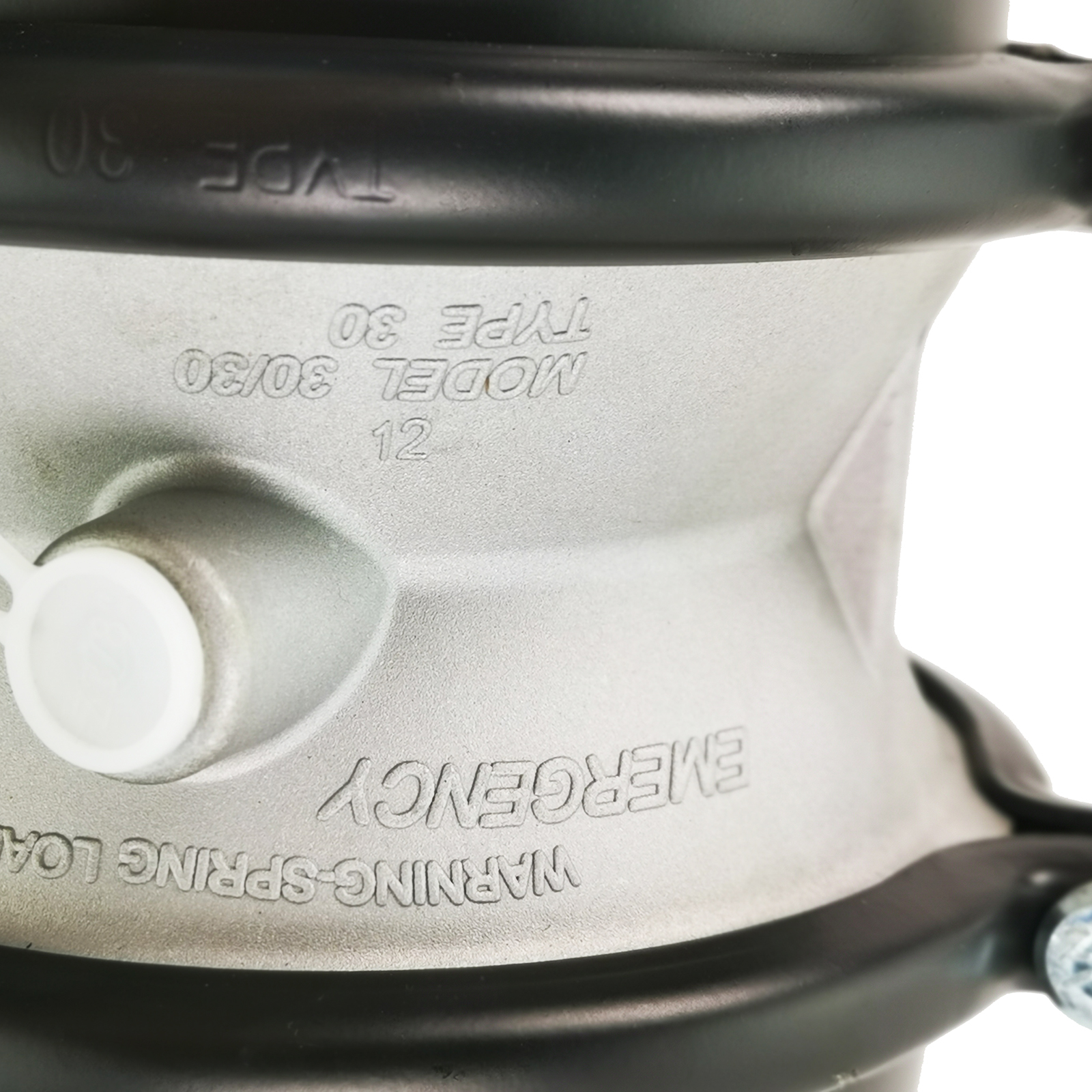

Product Details

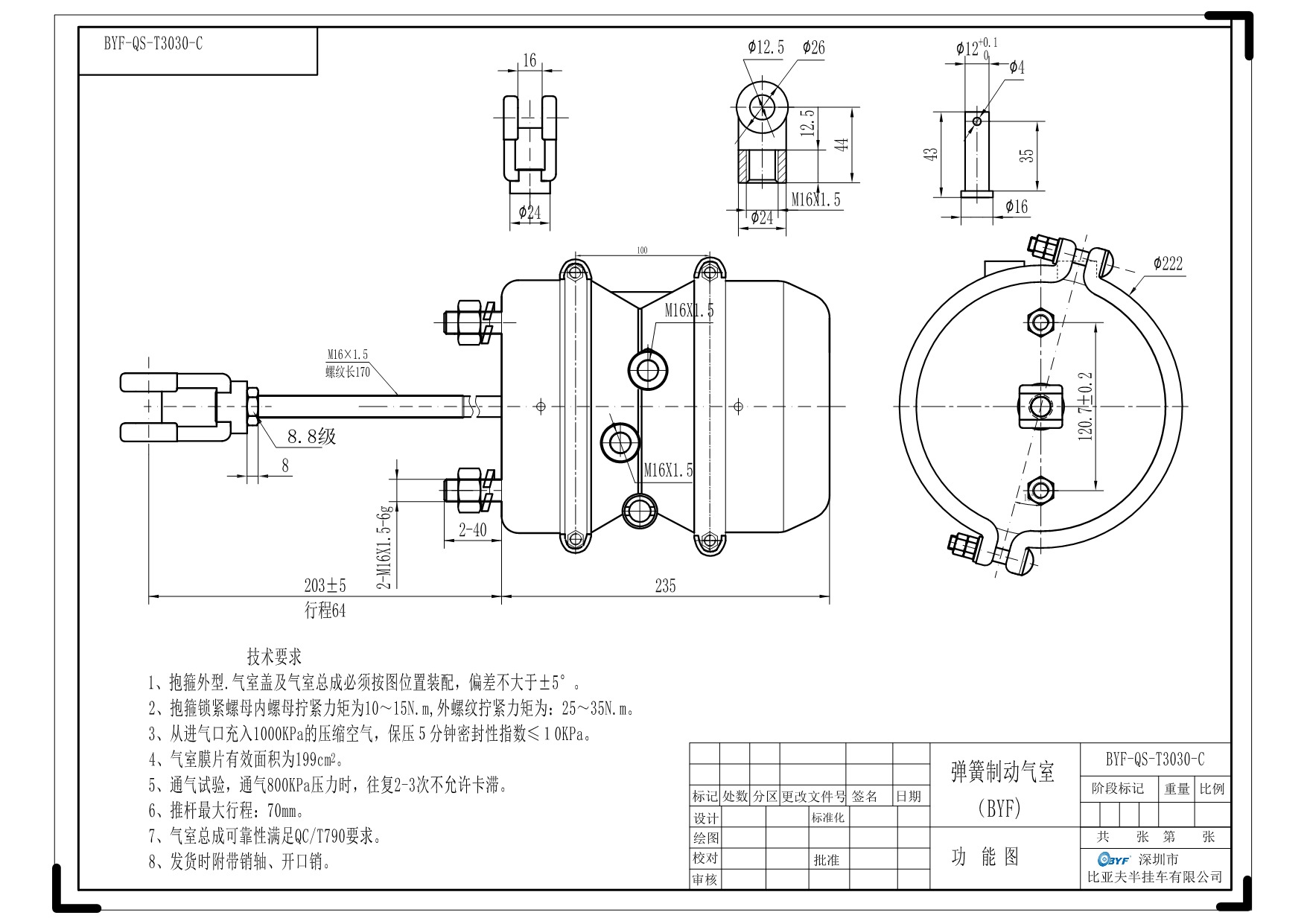

Drawing Details
Other Models For Your Choice
| T3030DD-L(SEALED) | | T2424DCP |
| T2430DD-L(SEALED) | | T2024DCP |
| T3030DD(SEALED) | | T1624DCP |
| T2430DD(SEALED) | | T30 |
| T3030DD | | T24 |
| T2430DD | | T20 |
| T2424DD | | T16 |
| T2024DD | | T12 |
| T1624DD | | T9 |
| T3030DP | | T30-L |
| T2430DP | | T24-L |
| T3024DP | | T20-L |
| T2424DP | | T30-DISC |
| T2024DP | | T24-DISC |
| T1624DP | | T20-DISC |
| T2430DP-DISC | | T16-DISC |
| T2424DP-DISC | | T9/6200 |
| T2024DP-DISC | | T12/6200 |
| T1624DP-DISC | | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price
for you.
2. After you confirmed the specification and price, our engineers
will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or
Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you
know your order details progress.
5. After the product manufacture finished, if you need, we will
arrange shipping for you.
With our professional skill, you just need to pick your products up
at the destination place, and don’t need to worry about the
shipping at all.
