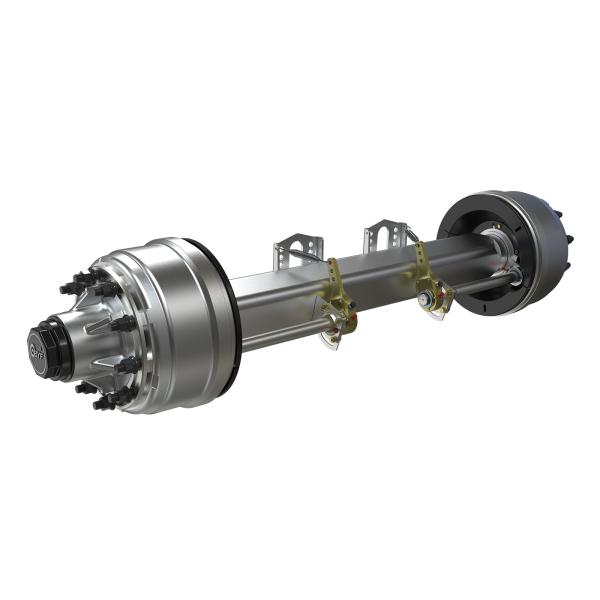

Heavy Duty Truck 13T Trailer Spare Part Square Or Round Axles
Technical Requirements
1. All welding points are free of any spatter and welding slag, all
welding seams are welded by CO2 protection welding, and the welding
seams are beautiful and firm.
2. The product is sprayed with four coats of paint, that is, two
coats of primer and intermediate top coat and top coat. The
thickness of the paint film is not less than 0.08mm. Use
high-quality polyurethane top coat and varnish. Need to be dried.
3. Mainly do not bump into during transportation.
4. Standard assembly, no brutal operation is allowed.
5. The torque of the connecting bolt shall be implemented according
to the GB/T 16938-2008 standard.
| OEM NO. | American Type 13T |
| Color | As Request |
| Material | 20Mn2 |
| Apply to | FUWA |
| Type | Semi-Trailer |
| Weight | 365 KG |
| Brake | 420*220mm |
| Track | 1840mm |
| Axle Beam | 150*150 |
| Stud | 10-M22*1.5 |
| Bearing | HM518445 |
| Total Length | 2185mm |
| Loading Port | Qingdao Port Or As Required |
Product Details

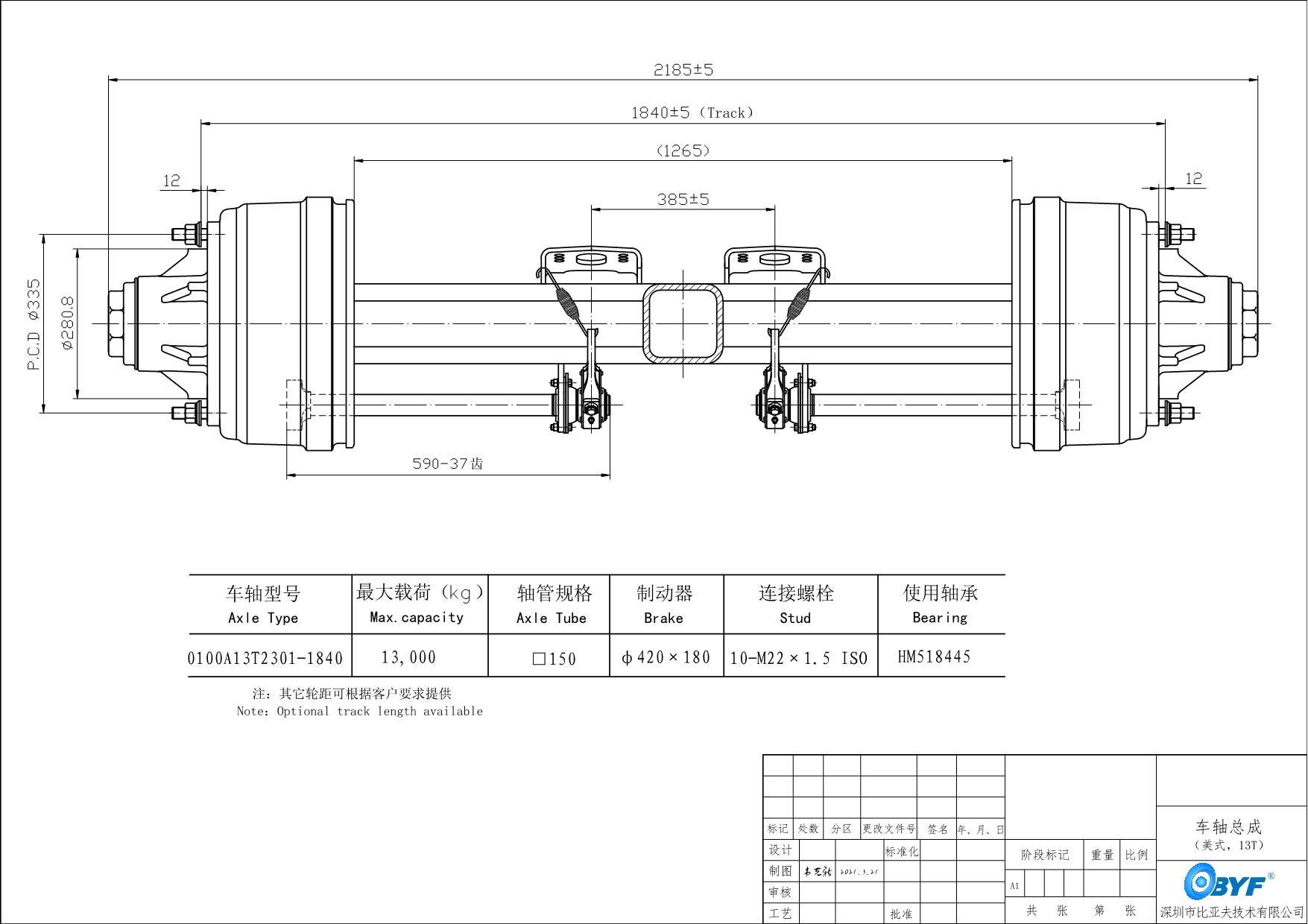

Drawing Details

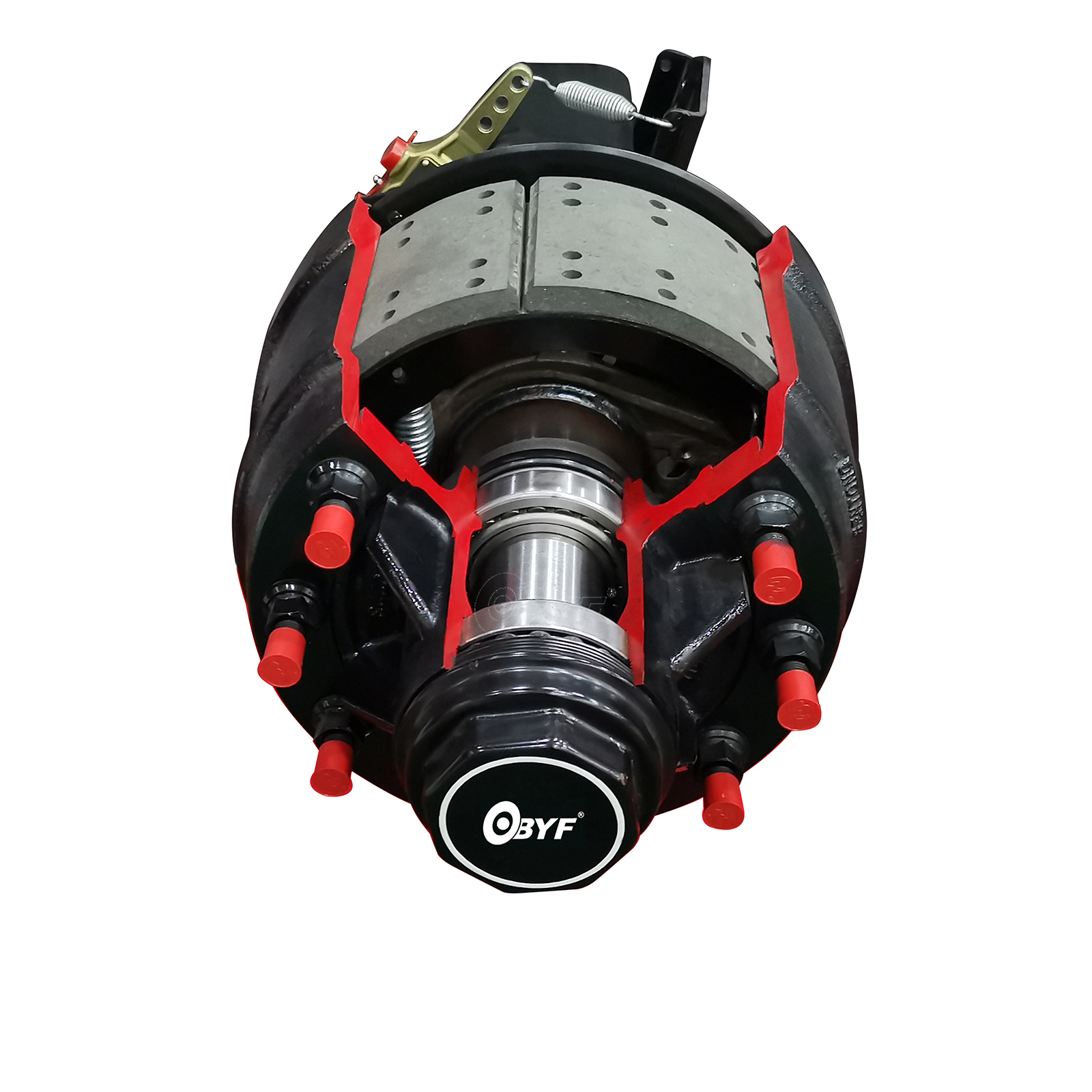

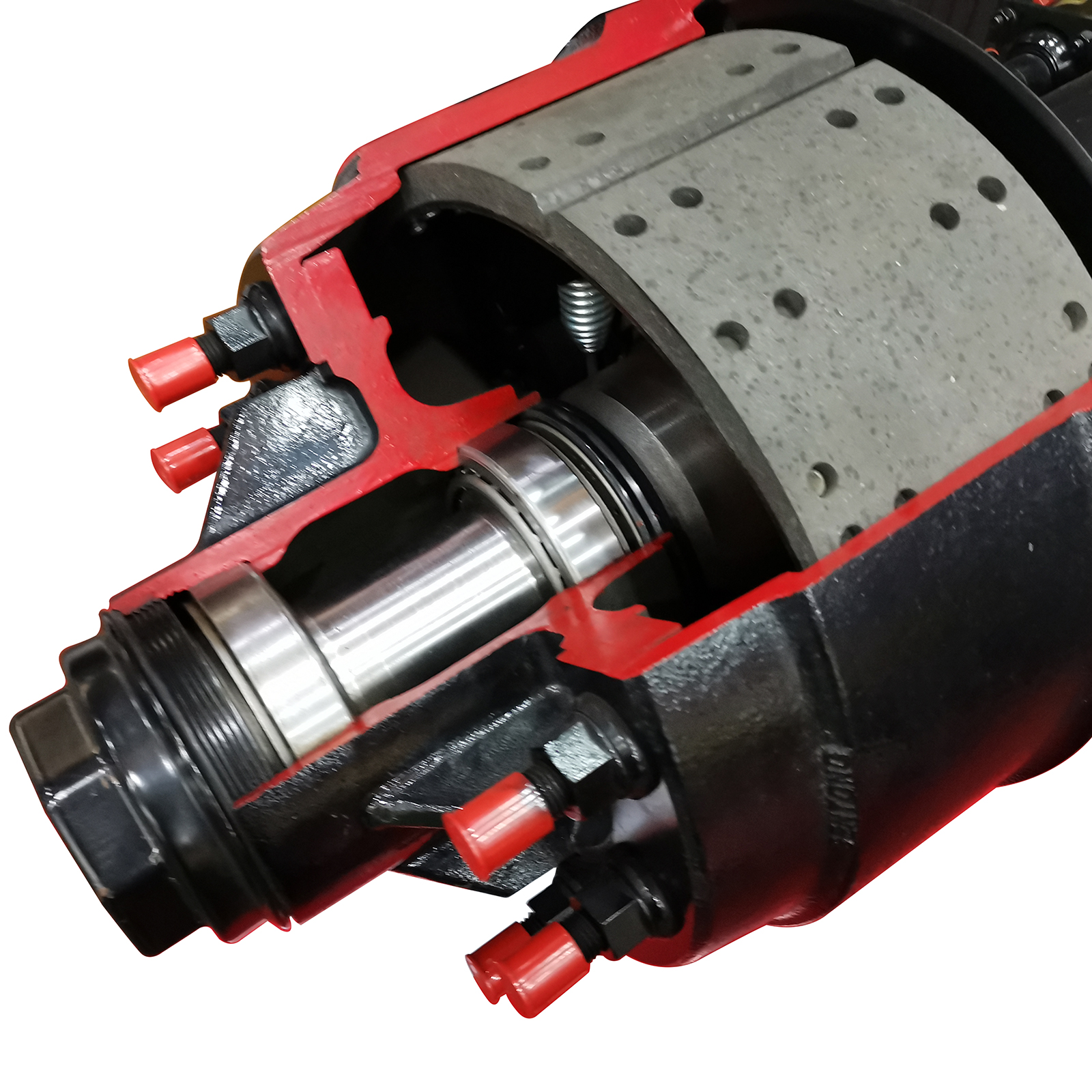

Axle Structure
BYF American Type Axle Drum Series Specification
| Max. Capacity | Track | Brake | Centre Distance Of Spring Seat | Axle Beam | Wheel Fixing | Total Length |
| Stud | P.C.D | Hole Diameter |
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 285.75 | 221 | ~2165 |
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 335 | 281 | ~2165 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 285.75 | 221 | ~2185 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2205 |
Factory Production
Packing & Delivery
1. 58PCS/20"Container
2. 500*500*2200MM
Excellent Pre-sale Service
1. According to your specification request, provide the best price
for you.
2. After you confirmed the specification and price, our engineers
will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or
Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you
know your order details progress.
5. After the product manufacture finished, if you need, we will
arrange shipping for you.
With our professional skill, you just need to pick your products up
at the destination place, and don’t need to worry about the
shipping at all.
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional factory with 20 years manufacturing history
Q: How long is your delivery time?
A: Generally it is 3-7 days for the samples, 25-35 days for 1-3
container. it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: T/T in advance ,30% deposit, balance before shippment.
