BPW 12T Trailer Spare Part Axles Square Beam 1840MM Inboard Drum Axle

Ask Lasest Price
Brand Name :	BYF
Model Number :	German Type 12T
Certification :	ISO9001:2015
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, , Cash
Supply Ability :	200000 Piece/Pieces Per Month
Delivery Time :	15 Days

Add to Cart

Product Details
Company Profile

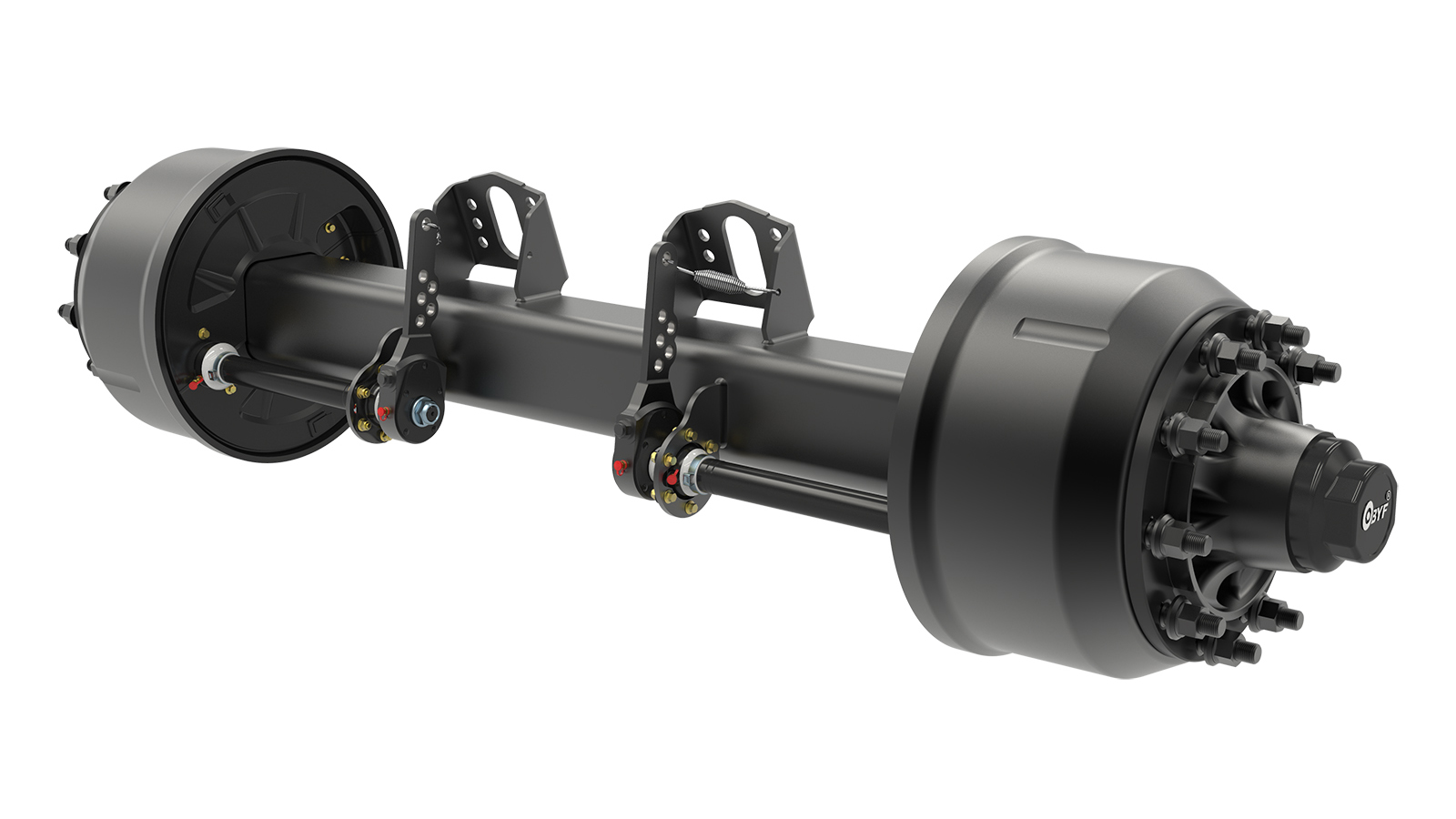

BPW 12T Trailer Spare Part Axles Square Beam 1840MM Inboard Drum Axle

BPW 12T Trailer Spare Part Axles Square Beam 1840MM Inboard Drum Axle

Technical Requirements

1. All welding points are free of any spatter and welding slag, all welding seams are welded by CO2 protection welding, and the welding seams are beautiful and firm.

2. The product is sprayed with four coats of paint, that is, two coats of primer and intermediate top coat and top coat. The thickness of the paint film is not less than 0.08mm. Use high-quality polyurethane top coat and varnish. Need to be dried.

3. Mainly do not bump into during transportation.

4. Standard assembly, no brutal operation is allowed.

5. The torque of the connecting bolt shall be implemented according to the GB/T 16938-2008 standard.

OEM NO.	German Type 12T
Color	Black
Material	20Mn2
Apply to	BPW
Type	Semi-Trailer
Weight	372 KG
Brake	420*180mm
Axle Beam	150*150
Stud	10-M22*1.5
Bearing	Inner33118 outer33213
Loading Port	Qingdao Port Or As Required

Product Details

Drawing Details

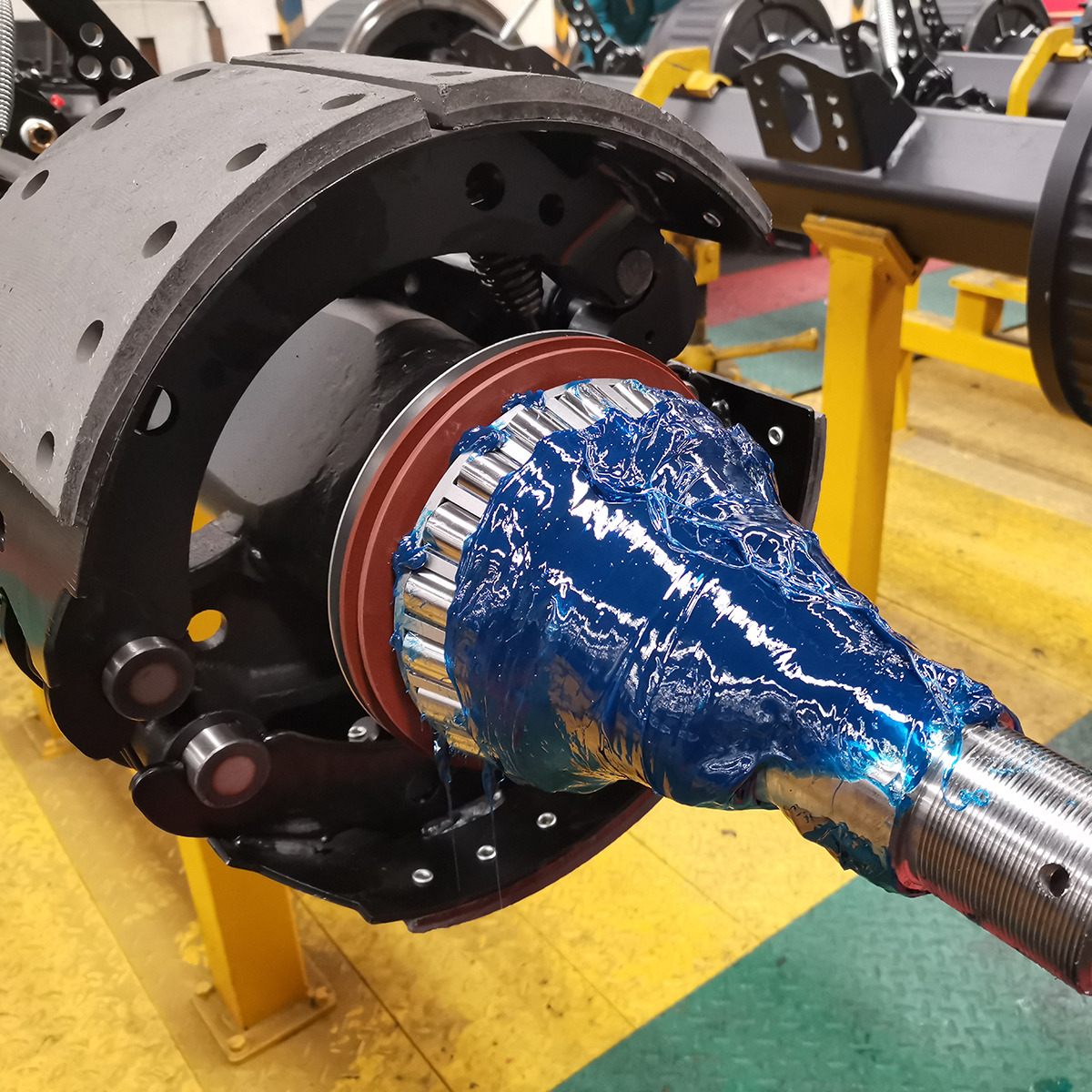

Axle Structure

BYF German Type Axle Drum Series Specification

Max. Capacity	Track	Brake	Centre Distance Of Spring Seat	Axle Beam	Wheel Fixing			Total Length
Max. Capacity	Track	Brake	Centre Distance Of Spring Seat	Axle Beam	Stud	P.C.D	Hole Diameter	Total Length
12	1840	420*180	≥980	150*150	10M221.5	335	281	~2146
12	1840	420*200	≥980	150*150	10M221.5	335	281	~2146
14	1840	420*180	≥980	150*150	10M221.5	335	281	~2180
14	1840	420*200	≥900	150*150	10M221.5	335	281	~2180
14	1840	420*220	≥980	150*150	10M221.5	335	281	~2242
16	1850	420*200	≥900	150*150	10M221.5	335	281	~2242
16	1850	420*220	≥980	150*150	10M221.5	335	281	~2242

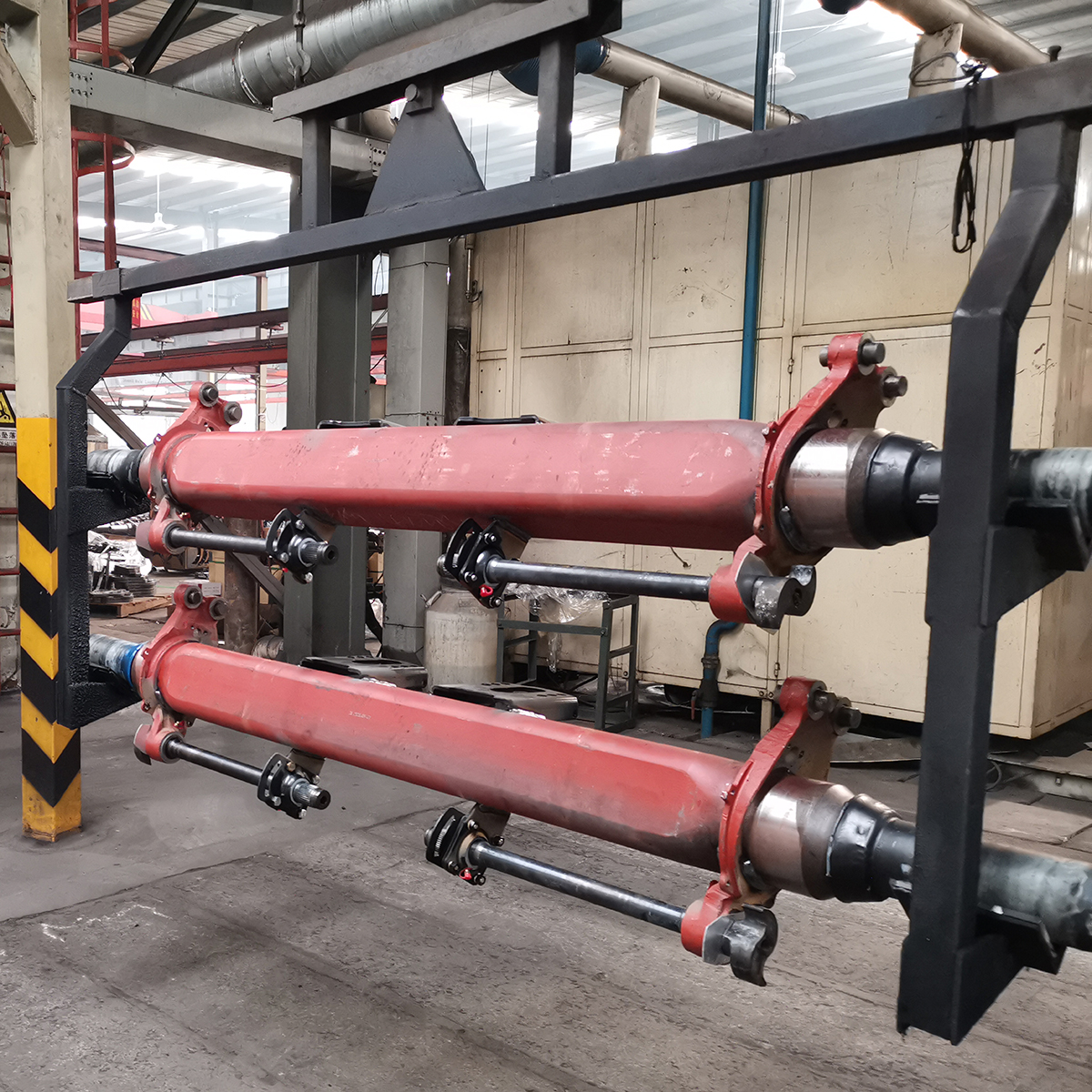

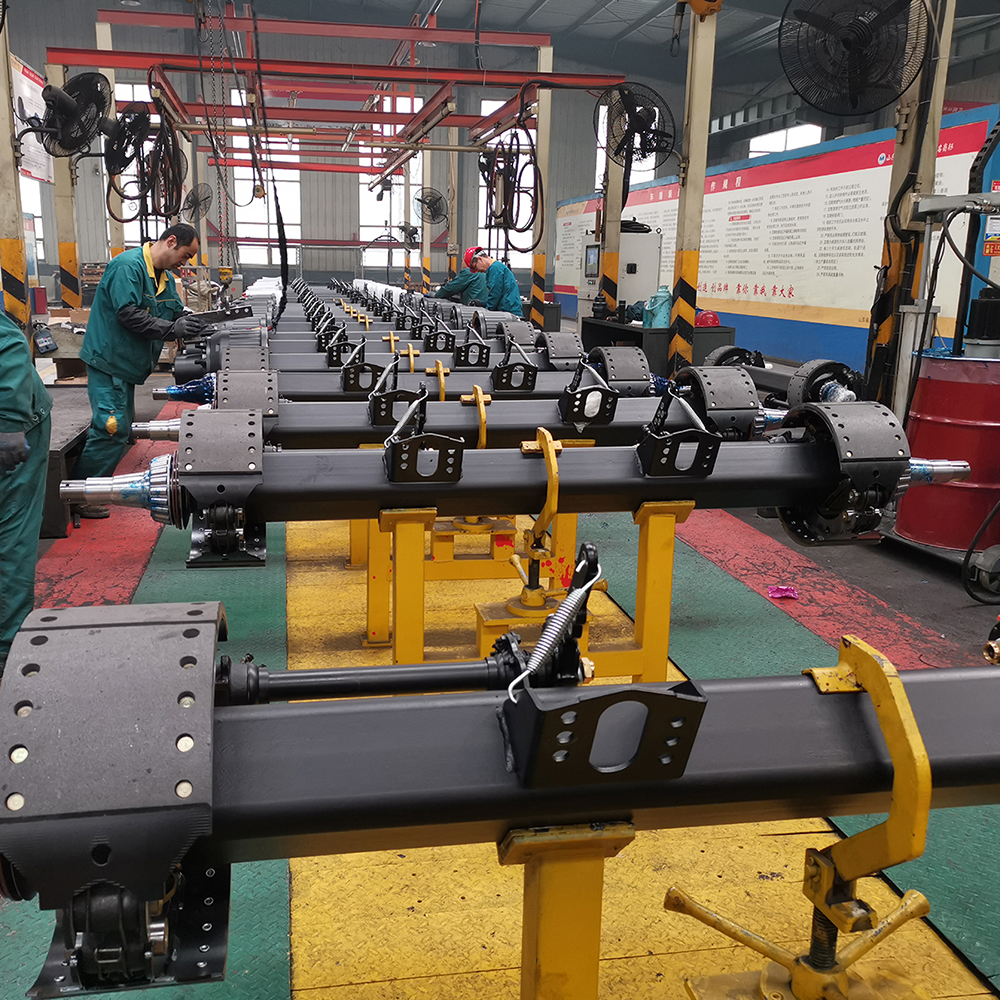

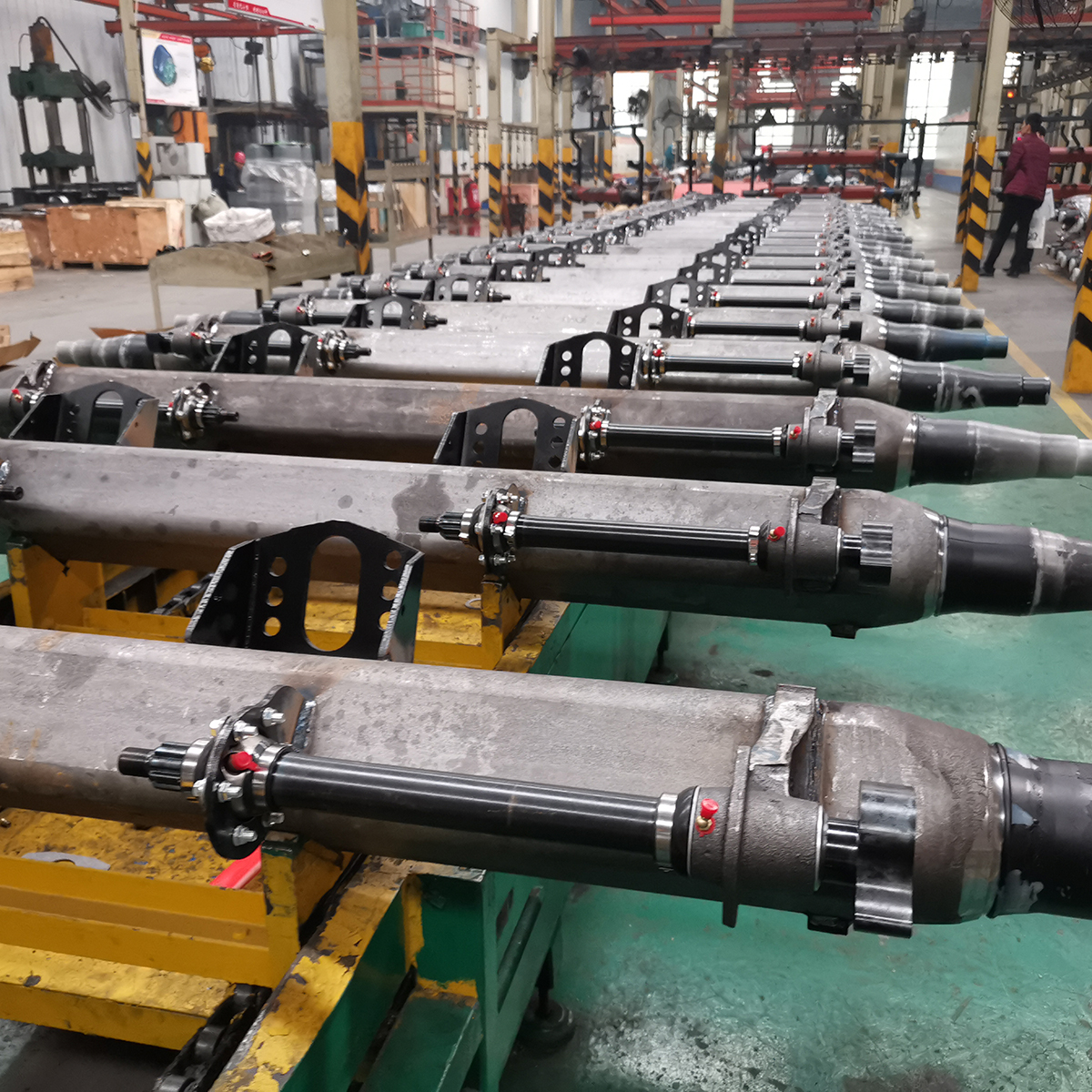

Factory Production

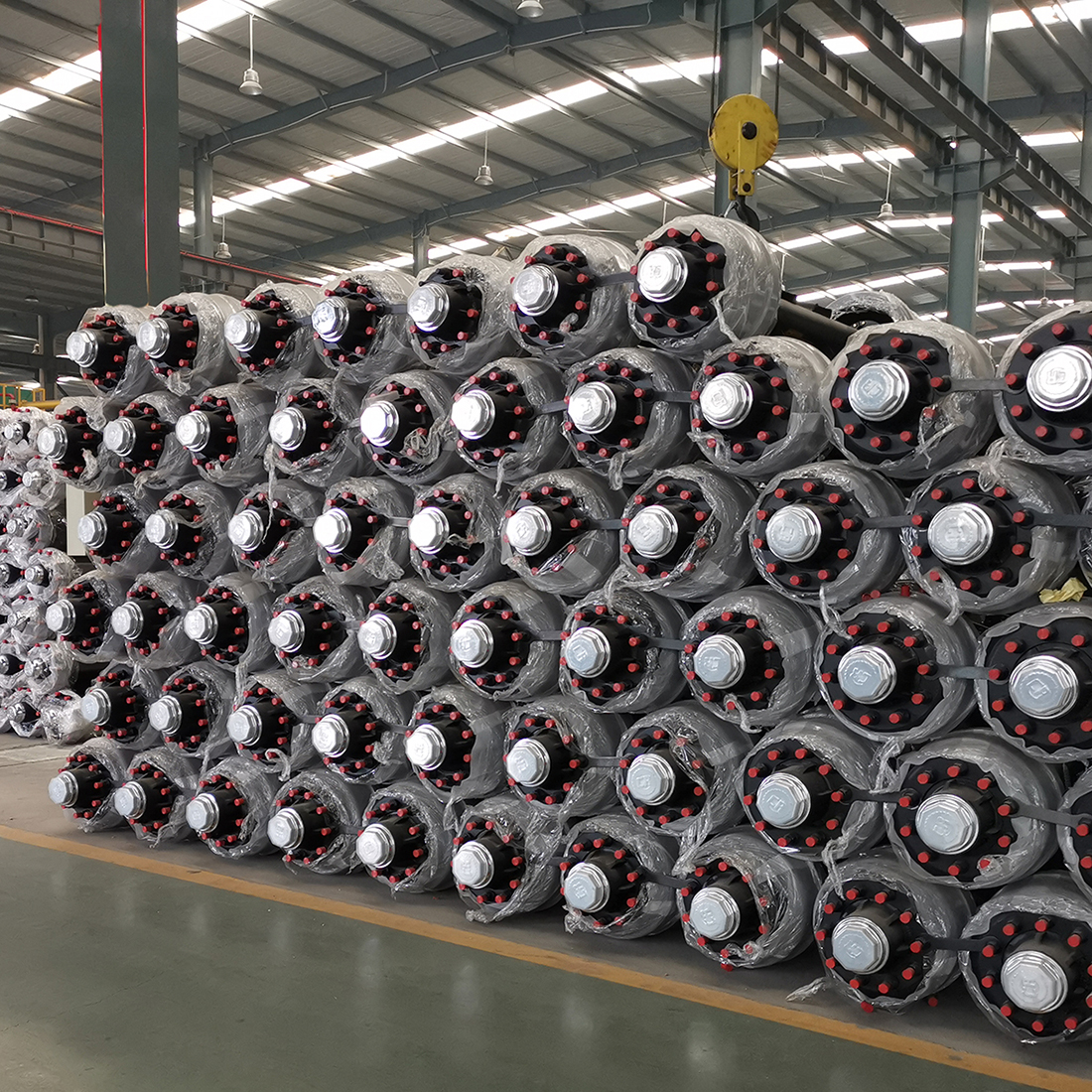

Packing & Delivery

1. 58PCS/20"Container

2. 500*500*2200MM

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional factory with 20 years manufacturing history

Q: How long is your delivery time?

A: Generally it is 3-7 days for the samples, 25-35 days for 1-3
container. it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.

Q: What is your terms of payment ?

A: T/T in advance ,30% deposit, balance before shippment.
If you have another question, pls feel free to contact us as below.
